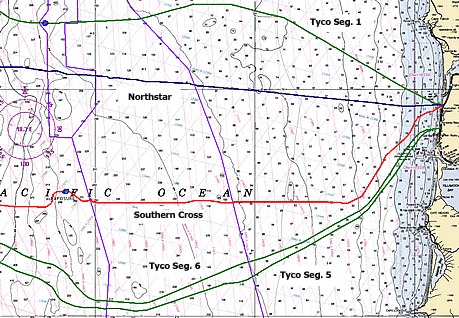

CABLE LOCATIONS


North Oregon Coast

Central Oregon Coast

  PLEASE NOTE: The AKORN, AUFS-W, NorthStar, Southern Cross, TPE, and TGN cables are covered under the terms of the OFCC agreements, while the North Pacific Cable is not.

The OFCC cable routes are available as importable files for the following navigation software programs:
Nobletec Visual Navigation Suite©, P-SeaWindPlot©, Maptech Offshore Navigator©, and ECC-Globe©. The routes are will soon be available in Coastal Explorer© format. These files are available by CD, floppy disc or e-mail free of charge to US West Coast Trawlers. Contact an OFCC port rep or the OFCC office to receive a copy.



Alaska NorthStar Cable
On July 9th, 1998, WCI Cable, Inc. entered into an historic cooperative agreement with Oregon fishermen that outlines the duties and responsibilities of each in relation to a new fiber-optic communications cable to be laid in the Pacific Ocean just north of Rockaway Beach, Oregon.

Under the terms of that agreement, the Oregon Fishermen’s Cable Committee had representatives aboard the cable ship Maersk Fighter and the remote-operated vehicle ship Kigoria.

Committee representatives observed nearly all phases of cable laying and burial, on both the continental shelf and slope out to approximately 820 fathoms water depth.

In 2008, Alaska Communications System Group, Inc. purchased the NorthStar Cable to complement the AKORN Cable, which was under construction.

Installation Report- Charts - Route Position List







Southern Cross Cable
The Southern Cross Cable Network, whose length is almost 32,500 km, was placed into service in November 2000. Originally designed to deliver 120 Gigabits per second of fully protected capacity, Southern Cross now has the potential to reach 1.2 Terabits per second (Tbps).

The Southern Cross Cable is the fastest, most direct connection from Australia, New Zealand, and Hawaii to the United States. The cable makes use of ACS Cable System's international cable landing station at Nedonna Beach, Oregon.

Further information is avaliable at www.southerncrosscables.com

Installation Report- Charts - Route Position List






Tata TGN Pacific Cable System
The three Tata Global Network (TGN) cables landing in Oregon make up a 'ring' of Tata transpacific cables which connect Oregon to East Asia and Southern California. The TGN Pacific system has 8 fiber pairs with a planned capacity of 7.68 terabits per second -- roughly the capacity needed to transmit 700 million 1-page e-mails in one second. Transmission time between Oregon and Japan is approximately 22 milliseconds. The TGN network is part of a technologically advanced 90,000 km cable system linking India, Asia, the Americas, and Europe. The Oregon Fishermen's Cable Committee participated in the planning of the Oregon shelf routes and had representatives aboard cable installation vessels for each of the Oregon cable landings. The cables are covered under the terms of a fishing agreement between the owner and the Oregon Fishermen's Cable Committee.

Cable Information - Charts - Route Position List









North Pacific Cable
A submarine fiber optic communication cable, called the North Pacific Cable (NPC), has been laid out of Pacific City, Oregon to arrive, after crossing over the continental shelf, at the North-South Interplain of the North Pacific Ocean, where it branches to terminate in Alaska and Japan.

PLEASE Note:
The North Pacific Cable is not
covered under the terms of the OFCC agreements






Alaska United Fiber System Cable
GCI's Alaska United fiber optic cable connects Anchorage, Fairbanks and Juneau to Seattle, and it brings significant telecommunication capacity to Alaska's growing Internet, video, voice and data markets. Alaska United is a high-capacity, diversely-routed, ring-protected fiber optic communication network connecting Alaska's major population centers with the lower 48 states. The network consists of three major sections: 1)AU-North, connecting Fairbanks and communities along the southern pipeline corridor to the network. 2) AU-East, connecting Anchorage, Juneau, and Seattle with landing sites at Whittier, Lena Point and Lynnwood, WA., and 3) AU-West, connecting Anchorage to Seattle with landing points in Seward, AK and Warrenton, OR. The system utilizes optical amplification allowing flexible capacity expansion through the life of the system. The submarine portions were installed with state-of-the-art burial and laying technique by industry leaders. The cable is buried from the cable landing stations to a water depth of over 800 fms., where possible to avoid external aggressions.

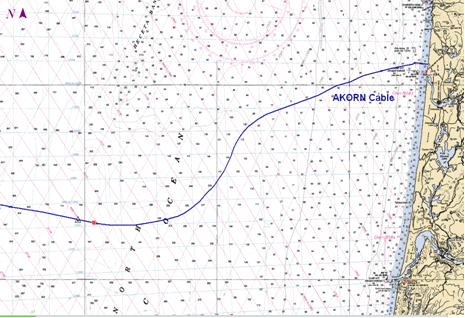

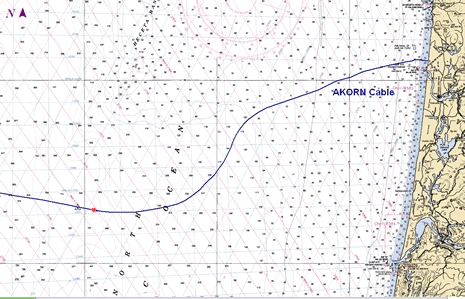

AKORN Cable
Alaska Communications Systems Group, Inc. (ACS) has completed work on the Alaska Oregon Network (AKORN) cable project. This new submarine cable starts at Anchorage, Alaska and lands at Florence, Oregon. Construction on the project began in 2007 and was completed in the first quarter of 2009. The installation went very well and is believed to be buried out to a depth of 727 fms. The cable's four fiber pairs will triple Alaska's current bandwidth and will be managed by dual Network Operations Control Centers in Alaska and the Lower 48 states. AKORN will be tied into existing terrestrial fiber routes to Portland and Seattle.
